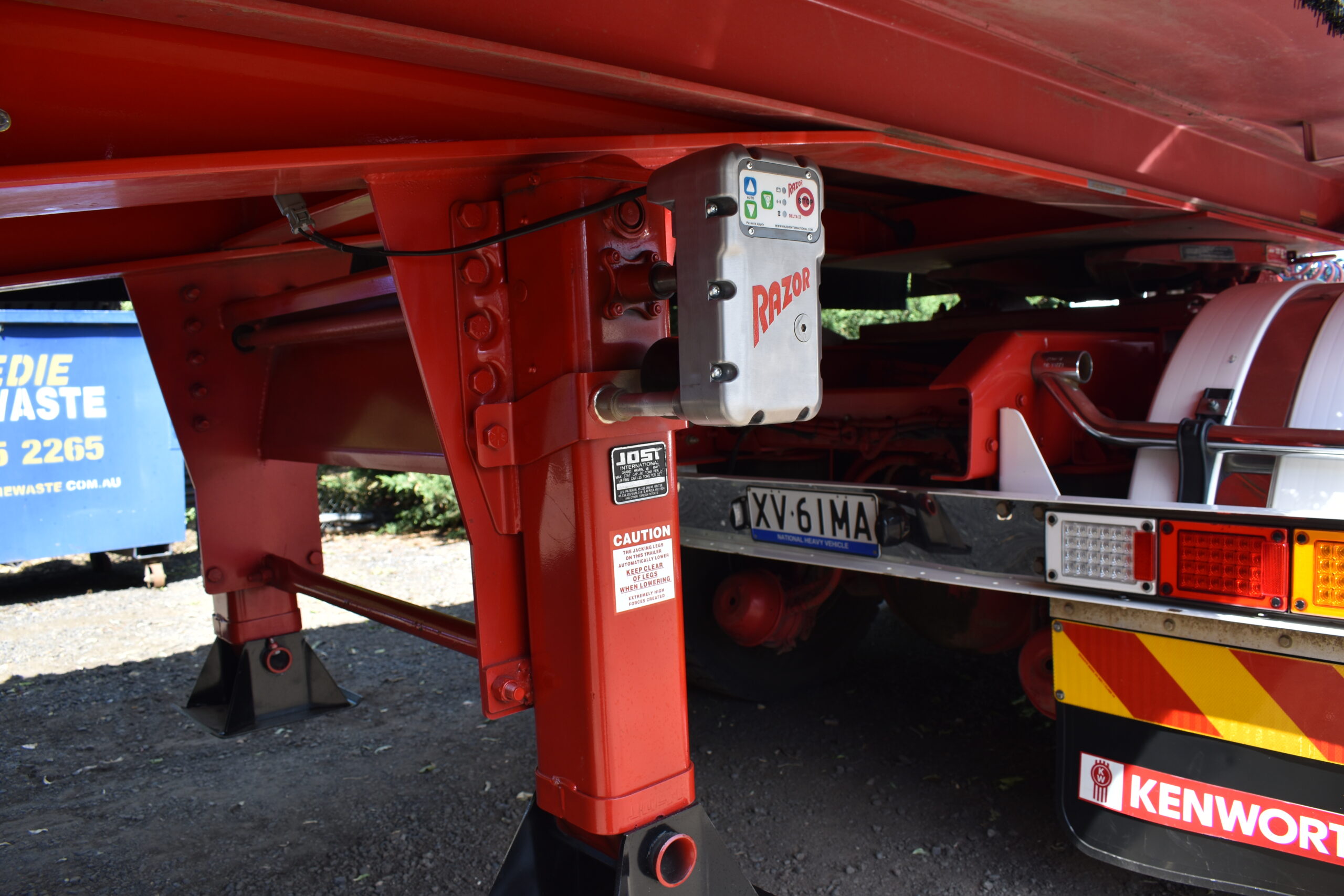

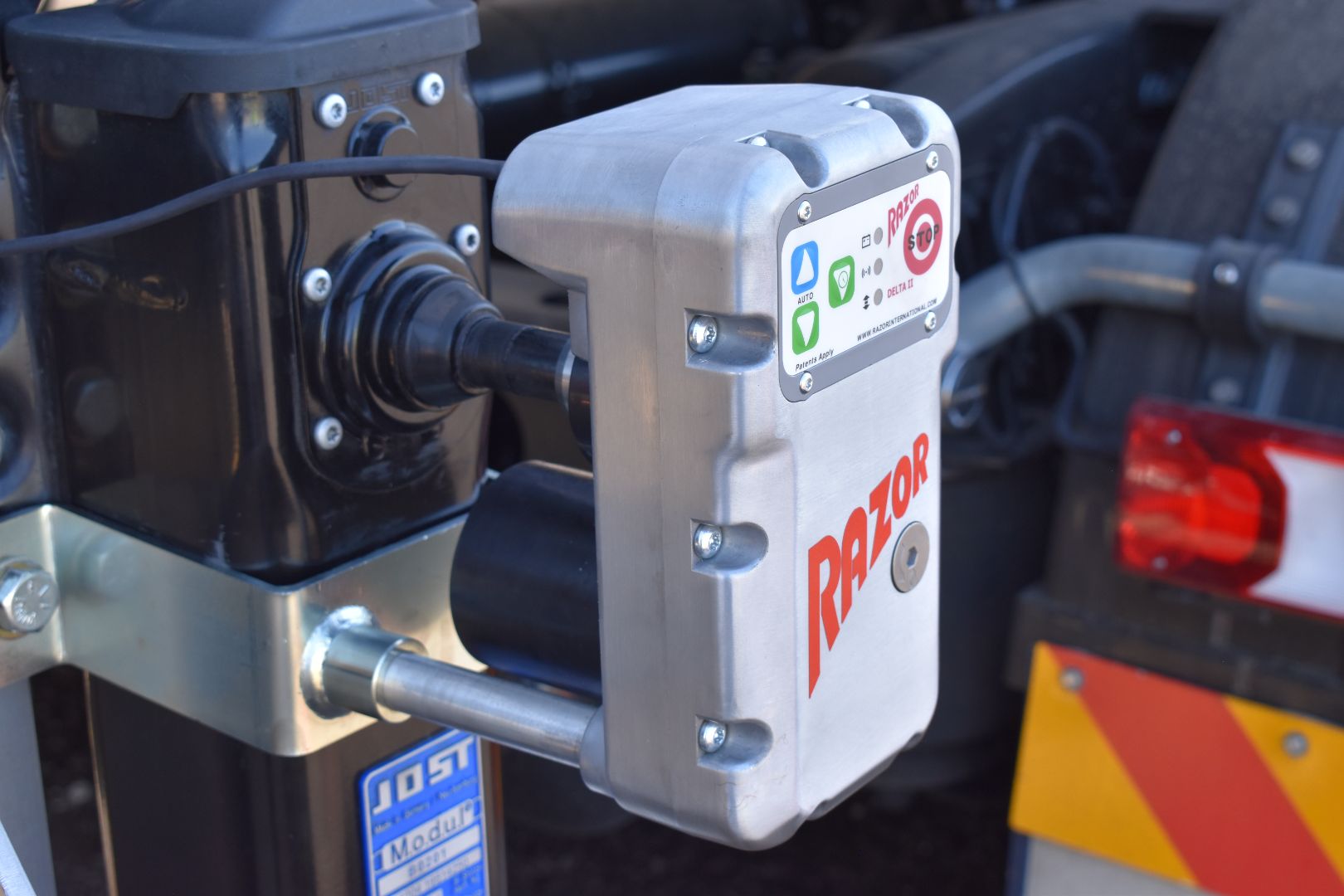

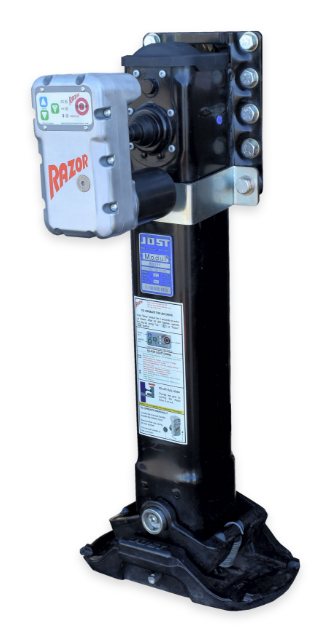

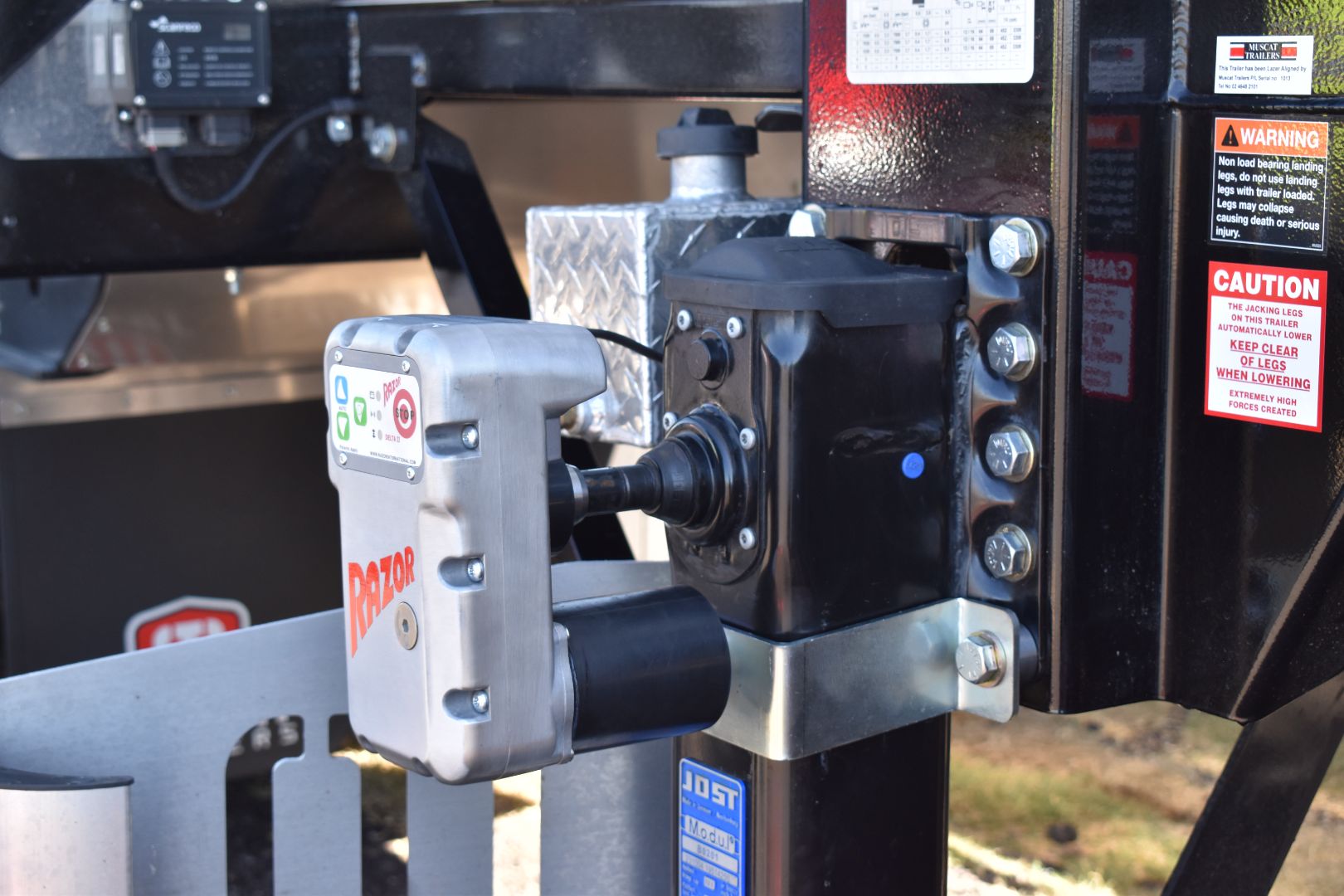

Razor DII Landing Leg System
Intelligent Safety Solutions
The safest, most trouble-free way to separate and connect the semi-trailer from your prime mover.
What makes it exceptional
Tough and Robust Solid Aluminum Casing

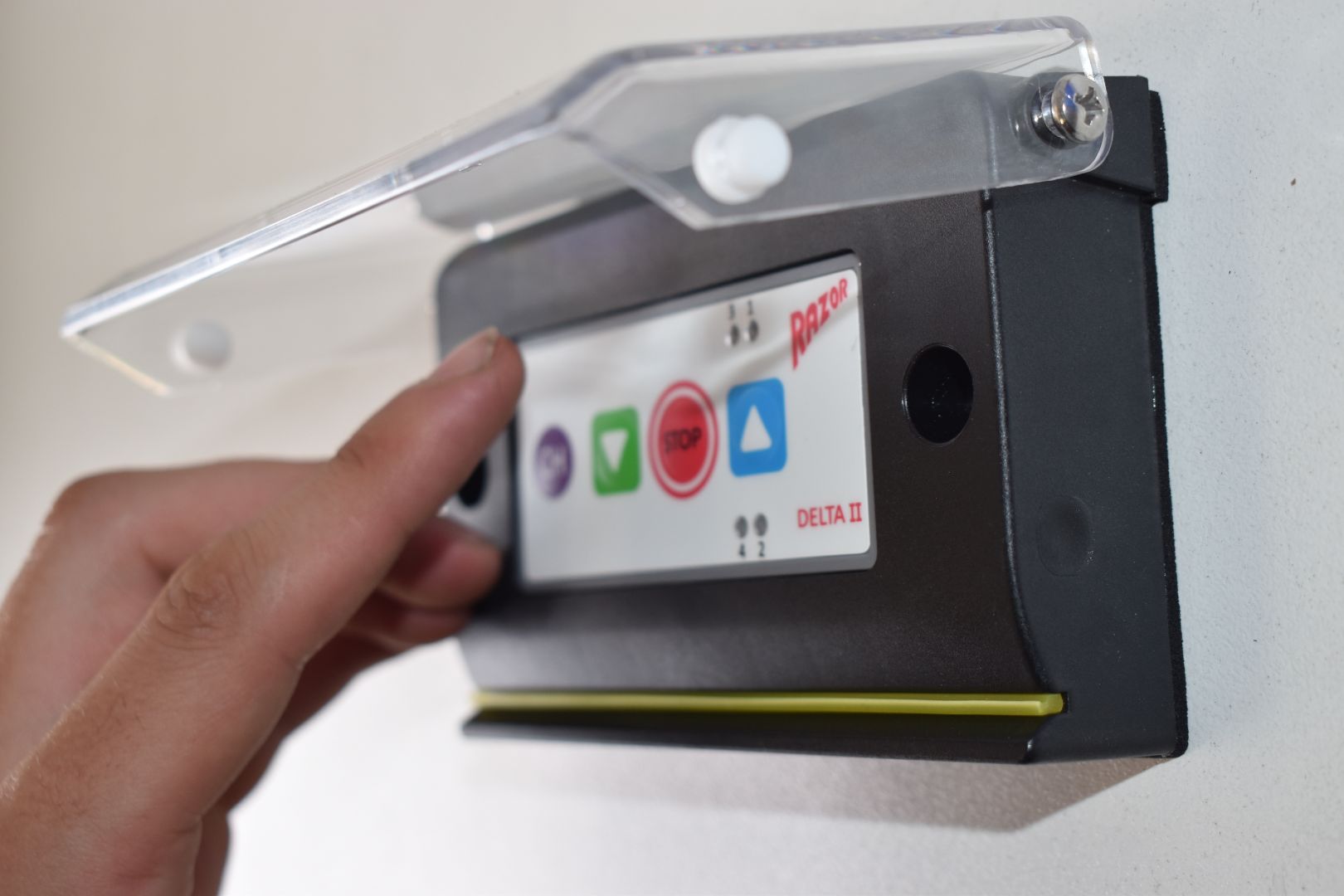

Wireless Functionality
Tough and Robust Solid Aluminum Casing

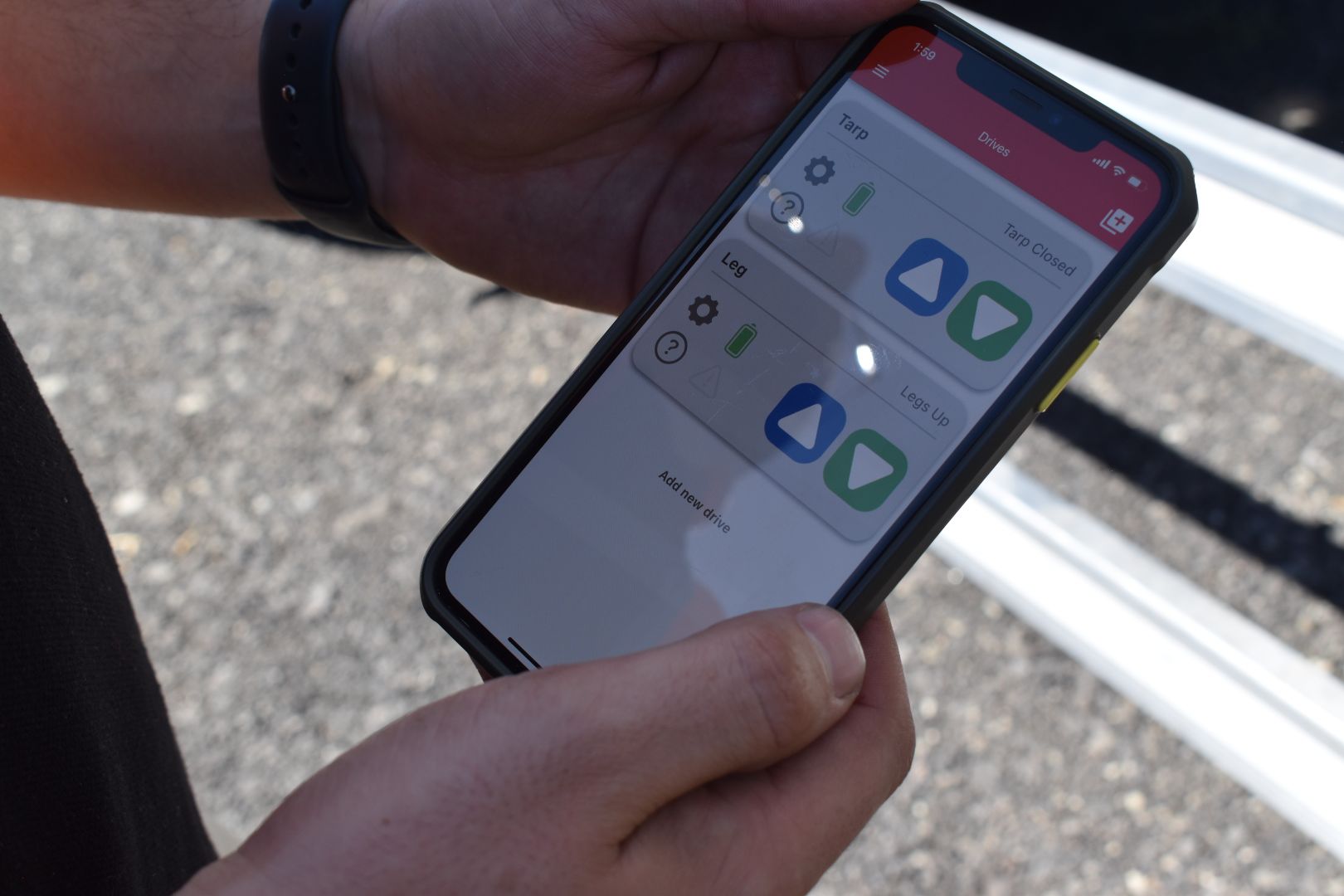

Wireless Functionality
Smart Features.
Real Benefits.
Easy to install,
even easier to use
A New Wave of Technology
The introduction of Razor Connect Mobile App and the development of the Razor Delta II Software has enabled many more adaptions to our Product Suite, configuring the Razor System to be controlled and well-suited to your specific requirements.
The Razor Product is now an engineer’s dream, a real solution to real world problems. We’ve solved the manual crank issues with Trailer Landing Legs and Trailer Tarps, we’ve given operators a Razor option for their Roller Doors, we’ve helped lift mezzanine floors, open curtain siders, lift gates, shift gates, move ramps and now we have a solution for those who have horse-floats, gooseneck or utility trailers. Enquire today to find out how Razor International can make your workload lighter.
Keep your Drivers Safe and your Trailers moving!
The Razor System not only is a solution, but it is also a part of your equipment. There is a reason we say Let Razor Do The Hard Work, because that’s what it does. After installing a Razor for your application, you’ll never want to go back.
No more manual operating, no more muscle strain, suddenly these odd tiresome jobs will be a thing of the past. Would you buy a car that still had manual windows? Didn’t think so.
Precision that powers performance.
Specifications
Length: 178mm (7”)(From front housing to the end of the motor)
Width: 134mm (5 9/32”)
Height: 237mm (9 11/32″)
Weight: 5.5kg (12.1lbs) (without battery kit), 13kg (28lbs) (with battery kit)
Voltage: 12 Voltage DC
Charge: Multivolt Charge Input (Charge 10.5 – 30.00 VDC)
Operating Temperature: -30oC ~ 60oC (-20oF ~ 140oF) (reduced performance at extremes)
Weather Resistance: IP65 (inclusive of optional battery isolator)
Torque: 120 Nm
Lifting Capacity: 25 Tonnes/55,000 pounds
Leg Speed: HIGH: (Depending on Landing Leg) LOW: (Depending on Landing Leg)
Operation Time: Approx 1-2mins (Depending on Landing Leg)
